51 64 020 Removing and installing/replacing top rear connection: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Scalding hazard!
Only perform work after engine has cooled down.

IMPORTANT: Driving without the connection is not permitted. (risk of damage to the body).

Necessary preliminary tasks:

Remove SIDE ENGINE COMPARTMENT LID SEAL MOUNTING in work area

NOTE: Graphic shows the left side only. Apply mirror image of graphic to the right side.

Release screws for air duct (1) on left and right.

Tightening torque 13 71 7AZ .

Release screws on connection at rear (2) left and right.

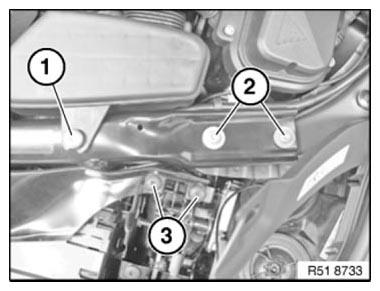

Fig 1: Identifying Engine Compartment Lid Catch, Air Duct And Rear Left And Right Connection

G08472307

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 51 61 3AZ .

Release rear screws for engine compartment lid catch (3) on left and right.

Tightening torque 51 61 5AZ .

Release screw (1).

Release screw connection for supports (2).

Tightening torque 51 61 6AZ .

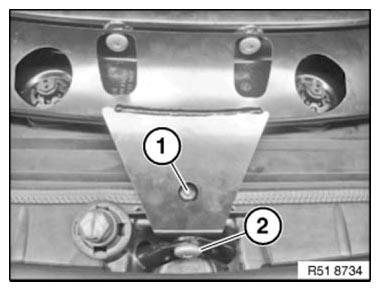

Fig 2: Identifying Screw Connection And Screw

G08472308

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Shown removed here for purposes of clarity.

Raise front/rear connection (1) and disengage Bowden cable (2) in marked area.

Remove front/rear connection (1).
