51 64 020 Removing and installing/replacing the top rear connection (connection of both wheel arches at front): Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Modify SUSPENSION CROSS-BRACE ON LEFT AND RIGHT . (Not for M5/M6 model)

Release screws (1).

Tightening torque 51 61 4AZ .

Detach rear connection (2) from front connection (3).

Installation note:

Guide lug secures rear connection (2) to front connection (3).

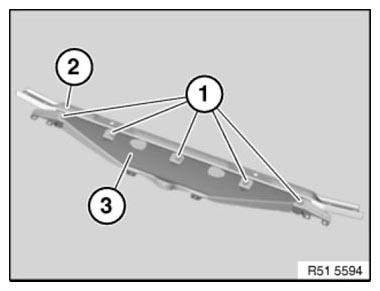

Fig 1: Identifying Front, Rear Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Only if replacing front connection (1):

Modify clips (2).

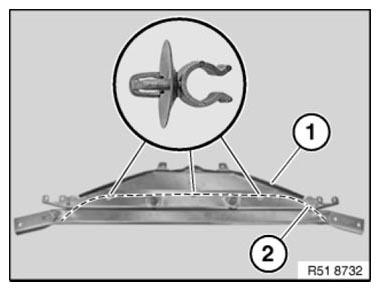

Fig 2: Identifying Front/Rear Connection And Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.
