51 71... Removing and installing/replacing (front) left or right suspension cross-brace
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Driving without the suspension cross-brace is not permitted. (risk of damage to the body).
Tighten screw on suspension cross-brace to torque. Then tighten to angle of rotation, special tool 00 9 120 .
Tighten screw on suspension cross-brace to torque. Then tighten to angle of rotation, special tool 00 9 120 .

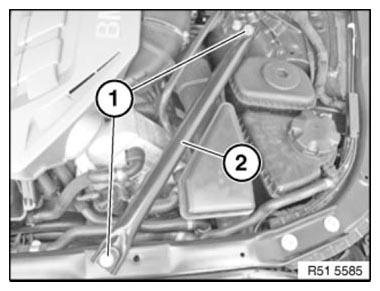

Release screws (1).
Tightening torque 51 61 1AZ AND 2AZ .
Remove suspension cross-brace (2).
Installation:
Make sure suspension cross-brace (2) is in correct installation position. Screw with washer is fitted at connection, front top.
