51 21 300 Removing and installing or replacing window cavity cover strip on outside of left or right front door
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
IMPORTANT:
Observe PROCEDURE for using special tool 00 9 324
.
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS" serve as the basis for this repair instruction and must be observed without fail.
The "INSTRUCTIONS ON FITTING WINDOW GUIDE SEALS" serve as the basis for this repair instruction and must be observed without fail.
Necessary preliminary tasks:
- Remove MIRROR ON FRONT DOOR
IMPORTANT:
If reusing the existing window cavity cover strip (1), make sure it is not bent.

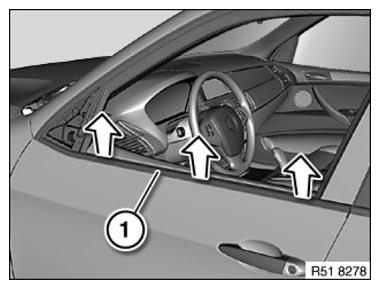

Lever out weather strip (1) with special tool 00 9 324 (starting at B-pillar).
Installation note:
Moisten weather strip (1) prior to installation with approved lubricant: Lubricant G13 (manufactured by Zestron), BMW part number 83 23 0441 032
