51 16 000 Removing and installing or replacing mirror on left or right front door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Unclip triangular mirror section trim (1).

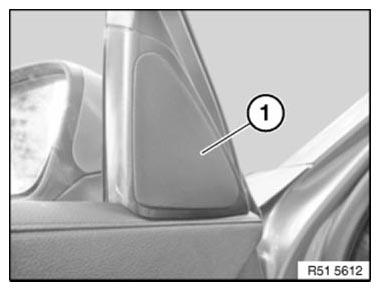

Fig 1: Identifying Triangular Mirror Section Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Protect door trim panel as pictured with adhesive tape (1) in work area.

Raise door seal (2) slightly.

Release screws (3), feed out mirror and disconnect associated plug connection.

Tightening torque 51 16 1AZ .

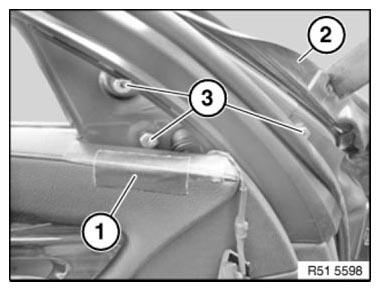

Fig 2: Identifying Adhesive Tape, Door Seal And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of mirror must not be damaged or missing:

Seal on mirror base plate
Sound insulation in front door

Check function.
