51 11 050 Removing and installing/renewing carrier for front bumper trim: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front BUMPER TRIM
Remove fanfare horn on LEFT and RIGHT

Remove impact absorber (1) towards front.

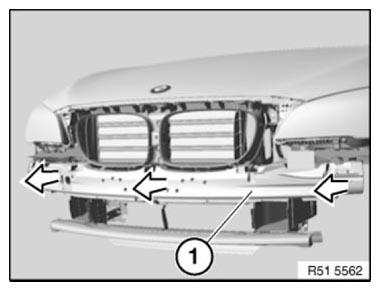

Fig 1: Removing Impact Absorber

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) on brake air duct (1).

Remove brake air duct (1) in direction of arrow.

Fig 2: Removing Brake Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

If ACC optional extra is installed:

Release screws (3) on ACC sensor bracket (1).

Tightening torque: 66 31 1AZ .

Unfasten plug connection (2) and disconnect.

Remove ACC sensor bracket (1).

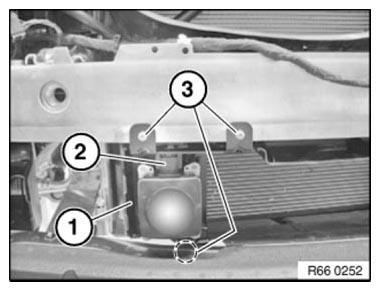

Fig 3: Identifying ACC Sensor Bracket, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws (2).

Tightening torque: 51 11 4AZ .

Unclip wiring harness (4) at marked points.

If necessary, unlock and disconnect plug connections (5) on short-range sensors.

Remove carrier (1) towards front.

Installation:

Make sure locking sleeve (3) is correctly seated in carrier (1).

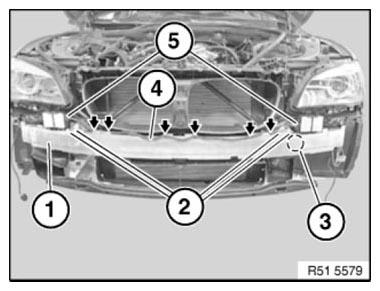

Fig 4: Locating Wiring Harness Screws

Courtesy of BMW OF NORTH AMERICA, INC.
