51 47 315 Removing and installing/replacing front carpet for passenger compartment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove HEATING AND AIR-CONDITIONING UNIT
Remove both front seats. See DRIVER'S SIDE and FRONT PASSENGER SIDE .
Remove COMPLETE ACCELERATOR PEDAL MODULE

Remove front floor trim panel (1) towards rear/top and if necessary feed out cable.

Fig 1: Identifying Front Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Apertures (1) serve as fixing points when fitting the front floor trim panel (2).

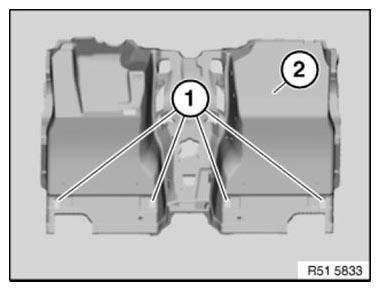

Fig 2: Identifying Apertures And Front Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
