51 47 244 Removing and installing/replacing all luggage compartment trims (with ski bag)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON LEFT .
Remove RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL
Remove BACKREST FOR REAR SEAT

Release screws (1) on ski bag trim (2).

Fig 1: Identifying SKI Bag Trim And Screws

G08472241

Courtesy of BMW OF NORTH AMERICA, INC.

Not with cool box or high-voltage system

Lever out expanding rivets (1).

Remove skibag trim (2).

Remove cover for luggage compartment separating wall (3).

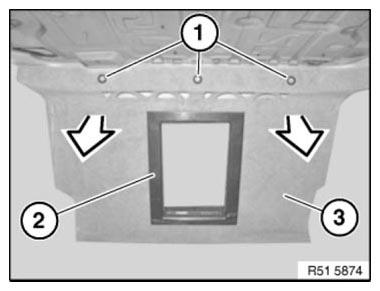

Fig 2: Removing Luggage Compartment Separating Wall Cover

G08472242

Courtesy of BMW OF NORTH AMERICA, INC.

With cool box or high-voltage system

Lever out expanding rivets (1).

Remove skibag trim (2).

Remove cover for luggage compartment separating wall (3).

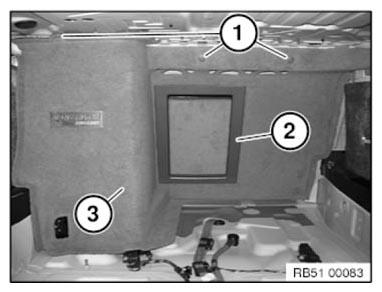

Fig 3: Identifying Luggage Compartment Separating Wall, Skibag Trim And Rivets

G08472243

Courtesy of BMW OF NORTH AMERICA, INC.
