Only F02 with rear air conditioning

From 11/2010 (from vehicle identification number C634168  ) the new version luggage compartment trim panels is installed that requires a modified dismantling sequence.

The new version considerable reduces the effort required for "Replacing rear air conditioning microfilter". It is possible to convert the old to the new version, sometimes absolutely necessary for replacement of single luggage compartment trim panels.

Version identification:

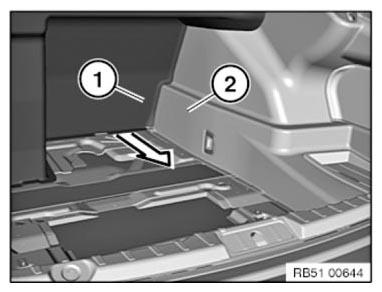

If the bottom area of luggage compartment partition wall (1) can be pulled out of luggage compartment-wheel arch panel (2) slightly to the rear, the new version is installed.

In this case, LUGGAGE COMPARTMENT PARTITION WALL  must firstly be removed.

Fig 1: Pulling Luggage Compartment Wheel Arch Panel To Rear

Courtesy of BMW OF NORTH AMERICA, INC.

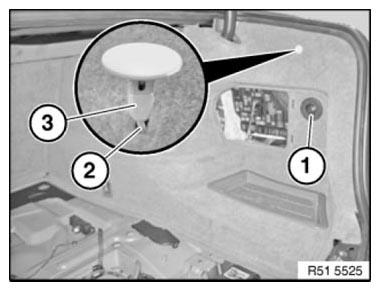

If necessary, unclamp cover (1).

Unclip emergency actuator (3) from emergency actuator tensioning strap (2) with a suitable tool.

Fig 2: Identifying Cover, Emergency Actuator And Emergency Actuator Tensioning Strap

Courtesy of BMW OF NORTH AMERICA, INC.

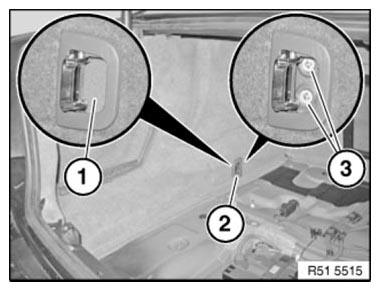

Lever out trim (1) in lashing eye (2) at opening and remove.

Release screws (3) and remove lashing eye (2).

Fig 3: Identifying Lashing Eye, Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

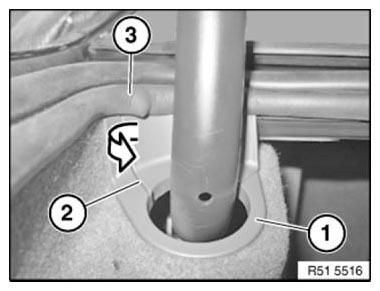

Open holder (1) at opening (2) with a suitable tool.

Lever bracket (1) out of seal (3).

Fig 4: Opening Holder Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

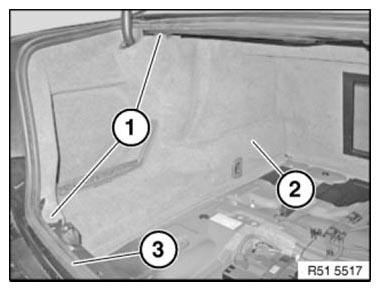

Release expanding rivets (1).

Lever out luggage compartment wheel arch trim (2) from seal (3) and remove.

Fig 5: Identifying Expanding Rivets, Luggage Compartment Wheel Arch Trim And Seal

Courtesy of BMW OF NORTH AMERICA, INC.
