51 47 066 Removing and installing/replacing illuminated finishing strip on front left or right entrance

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove FRONT ENTRANCE COVER STRIP

Unclip cover (1) using special tool 00 9 317 .

Disconnect plug connection (2).

Remove cover (1).

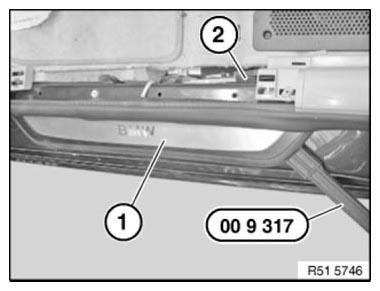

Fig 1: Removing Front Entrance Cover Strip Cover Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty clips (1).

If necessary, lever clips out of entrance with suitable tool.

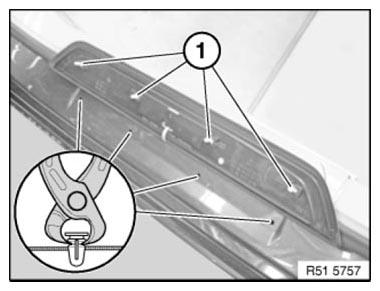

Fig 2: Identifying Finishing Strip Clips

Courtesy of BMW OF NORTH AMERICA, INC.
