51 37 000 Removing and installing / replacing complete rear left or right power window regulator: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
Carry out work on the power window regulator only when the power window motor is de-energized.

Necessary preliminary tasks:

Remove rear side window glass. See REAR SIDE WINDOW GLASS (WITHOUT ROLLER SUN BLIND) or REAR SIDE WINDOW GLASS (WITH ROLLER SUN BLIND) .

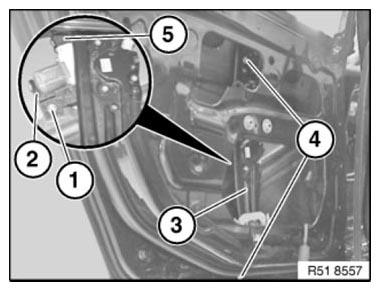

Slacken bolt (1).

Tightening torque 51 35 11AZ .

Release screws (4).

Tightening torque 51 35 2AZ .

Disconnect plug connection (5).

Feed out power window regulator (3).

Installation note:

Holder (2) must be correctly seated on inner door panel rail.

Fig 1: Identifying Plug Connection, Power Window Regulator, Holder, Screws And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

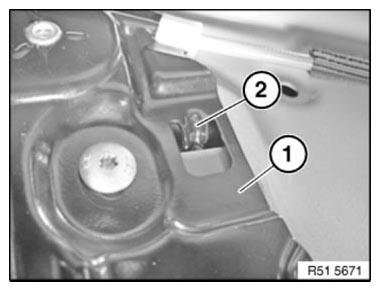

Make sure guide lug (2) of power windows (1) is correctly seated in recess of door structure.

Fig 2: Identifying Guide Lug And Power Window Unit

Courtesy of BMW OF NORTH AMERICA, INC.
