22 11 100 Replacing right engine support arm (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Secure engine in INSTALLATION POSITION
Lower FRONT AXLE SUPPORT

Release screw (1).

IMPORTANT: Installation:
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the bolt connection (engine mount/engine support arm).

Tightening torque 22 11 2AZ .

Fig 1: Identifying Engine Mount Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ .

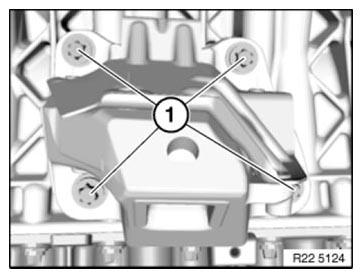

Fig 2: Identifying Engine Support Arm Screws

Courtesy of BMW OF NORTH AMERICA, INC.
