11 00 670 Securing engine in installation position (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Risk of injury!

Observe following instructions relating to special tool:

  1. Prior to each use, check the special tools for defects, modifications and operational reliability.
  2. Damaged/modified special tools must not be used!
  3. No changes or modifications may be made to the special tools!
  4. Keep special tools dry, clean and free of grease.
NOTE:
  • Numbering system for special tools has been re-encoded.
IMPORTANT: Special tool 00 6 000 must not be fitted when transverse member (1) is installed!
Fig 1: Identifying Transverse Member
G06888422Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Assemble transverse member 00 6 000 with special tools 00 6 00200 6 004 , 00 6 010, 00 6 050 .

Fig 2: Assembling Transverse Member 00 6 000 Using Special Tools 00 6 002 00 6 004, 00 6 010, 00 6 050
G06888423Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Contact points (1) for special tool 00 6 050 are pictured.
Fig 3: Identifying Contact Points
G06888424Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Risk of damage!

Position transverse member 00 6 000 with a 2nd person helping on contact points ().

Secure suitable chain (1) on the spindle 00 6 002 .

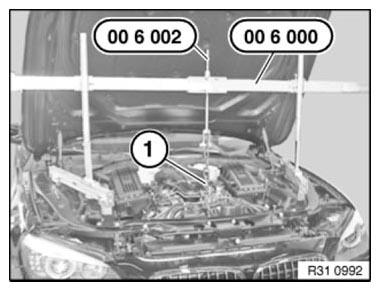

Fig 4: Securing Suitable Chain On Spindle 00 6 002
G08469092Courtesy of BMW OF NORTH AMERICA, INC.

Suspend chain on the front suspension lug (1) of the engine.

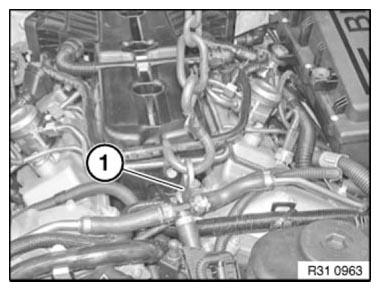

Fig 5: Identifying Front Suspension Lug
G08469093Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Avoid a change of engine position in the transverse or longitudinal direction.

Always make sure there is sufficient clearance between the engine (or its attachment parts) and the body.

WARNING: Risk of injury!

Tighten down all screws and nuts on transverse member 00 6 000 .

Fig 6: Identifying Transverse Member 00 6 000
G06888426Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: see 1AZ in 22 11 ENGINE MOUNTING

Raise engine approx. 10 mm with transverse member.

Fig 7: Identifying Transverse Member Screws
G06888427Courtesy of BMW OF NORTH AMERICA, INC.
