13 54 015 Removing and installing/sealing left throttle valve assembly (N74): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Turn off ignition
Remove INTAKE SILENCER , left
Remove ACOUSTIC INSULATION for bulkhead on left

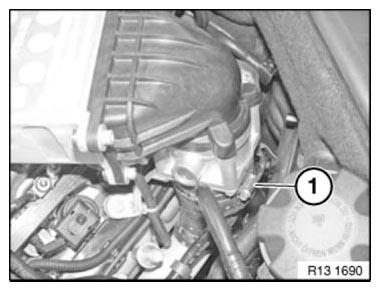

Release clamp (1)

Tightening torque: see 5AZ in 13 71 AIR INTAKE SYSTEM

Fig 1: Identifying Throttle Valve Assembly Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

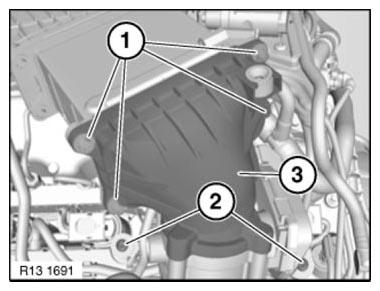

Release screws (1).

Tightening torque: see 3AZ in 13 54 THROTTLE AND ACTUATOR

Unfasten screws (2).

Tightening torque: see 2AZ in 13 54 THROTTLE AND ACTUATOR

Unlock plug on throttle body and disconnect.

Detach air duct (3) together with throttle body toward stop and remove.

Installation:

Check seals. Replace damaged seals.

Fig 2: Identifying Air Duct And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

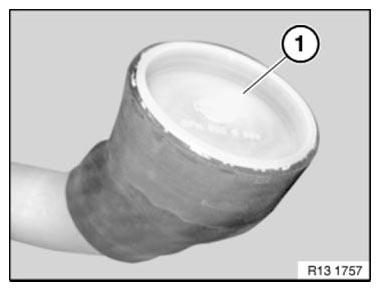

Close off charge air pipe with special tool (1) 11 5 220.

Fig 3: Closing Off Charge Air Pipe Using Special Tool 11 5 220

Courtesy of BMW OF NORTH AMERICA, INC.

Only if replacing throttle body:

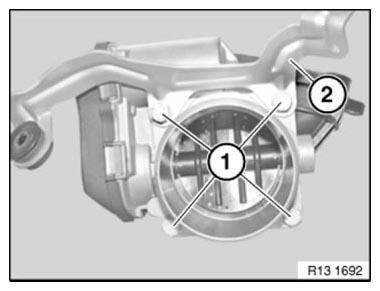

Release screws (1).

Tightening torque: see 1AZ in 13 54 THROTTLE AND ACTUATOR

Remove throttle body from air duct.

Fit air duct on new throttle valve assembly.

Fig 4: Identifying Throttle Valve Assembly And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
