13 62 591 Removing and installing / replacing pressure sensor for charge air on left (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Turn off ignition
Remove left INTAKE SILENCER HOUSING

Release clamp (1).

Tightening torque: see 5AZ in 13 71 AIR INTAKE SYSTEM

Remove hose supports (2).

Fig 1: Identifying Hose Supports And Clamp

G08469757

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: see 7AZ in 13 62 SENDERS FOR CONTROL UNIT

Pull pressure sensor (2) out of charge air duct, left.

Unlock plug (3) and remove.

Remove pressure sensor (2).

Installation:

Replace sealing ring on pressure sensor.

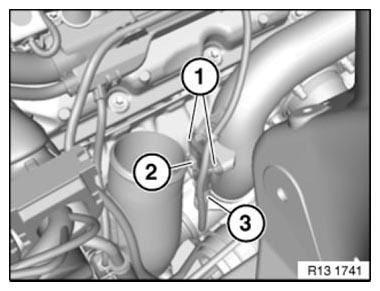

Fig 2: Identifying Pressure Sensor, Plug And Screws

G08469758

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Delete fault memory.
