11 28 020 Replacing tensioning device for alternator drive belt (N74)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove alternator DRIVE BELT
If necessary, remove special tool 11 0 390 .

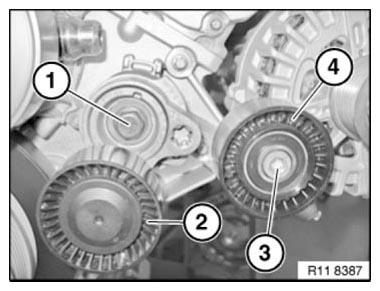

Release screw (1).
Tightening torque: see 1AZ in 11 28 V-RIBBED BELT WITH TENSION AND DEFLECTION ELEMENT
Remove belt tensioner with idler pulley (2).
Assemble engine.
