11 65 712 Removing and installing/replacing electric changeover valve on exhaust turbocharger, left (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left TURBOCHARGER .

Release screws (1).

Remove electric changeover valve.

Installation note:

Replace O-ring.

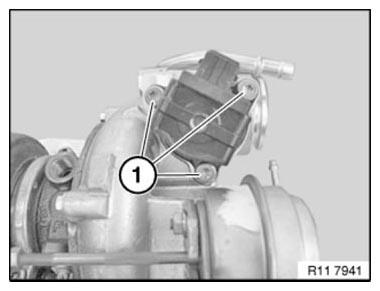

Fig 1: Identifying Electric Changeover Valve Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Follow diagnosis instruction.
