11 65 030 Removing and installing/replacing exhaust turbocharger, left, cylinders 7 - 12 (N74)

Only perform these tasks on an engine that has cooled down.

Necessary preliminary tasks:

• Remove CATALYTIC CONVERTER , cylinders 7 - 12
• Remove power steering gear. See HYDRAULIC STEERING GEAR or ACTIVE FRONT STEERING HYDRAULIC STEERING GEAR .
• Remove CHARGE AIR PIPE
• Remove CLEAN AIR PIPE
• Remove INTERMEDIATE PIPE

Release banjo bolt (1).

Tightening torque: see 4AZ in 11 42 OIL FILTER AND LINES

Replace seals.

Unfasten banjo bolt (2).

Replace seals.

Tightening torque: see 2AZ in 11 53 THERMOSTAT AND CONNECTIONS

Disconnect vacuum hose (3) from vacuum unit.

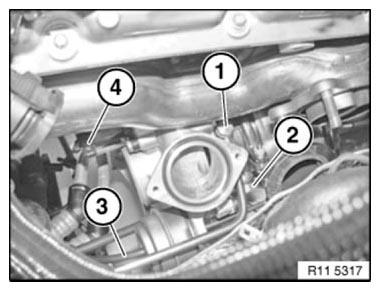

Fig 1: Identifying Vacuum Hose, Plug Connection And Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (4).

Open hose clip (1).

Tightening torque: see 7AZ in 11 00 STANDARD SCREW CONNECTION

Pull off coolant line (2).

Installation:

Replace hose clamp (1)  .

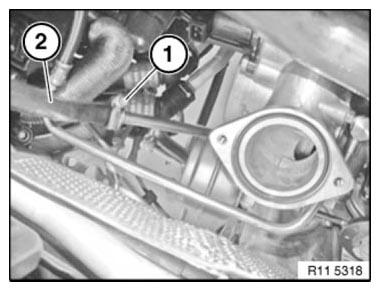

Fig 2: Identifying Coolant Line And Hose Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: see 5AZ in 11 42 OIL FILTER AND LINES

Lay oil line from turbocharger to side.

Installation:

Replace seal  .

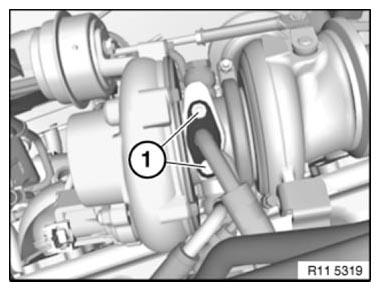

Fig 3: Identifying Turbocharger Oil Line Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Remove heat shield from starter.

Tightening torque: see 2AZ in 12 41 STARTER MOTOR WITH MOUNTING

Fig 4: Identifying Starter Heat Shield Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: see 4AZ in 11 62 EXHAUST MANIFOLD

Remove exhaust turbocharger with coolant line forwards and downwards.

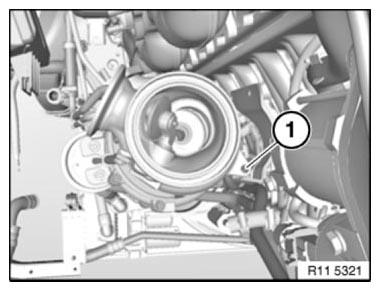

Fig 5: Identifying Exhaust Turbocharger Screws

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, convert coolant feed line to new turbocharger.

Release banjo bolt (1).

Disconnect line (2).

Replace seals.

Tightening torque: see 3AZ in 11 53 THERMOSTAT AND CONNECTIONS

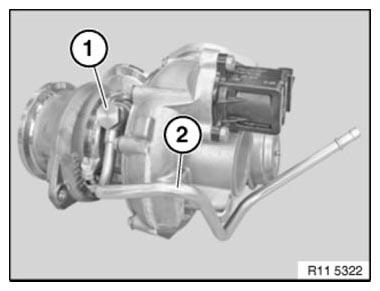

Fig 6: Identifying Coolant Feed Line And Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Install intermediate tube (3).

Tighten self-locking nut (1).

Tightening torque: see 6AZ in 18 31 EXHAUST SYSTEM

Position V-ribbon clips on turbocharger.

Tightening torque: see 7AZ in 18 31 EXHAUST SYSTEM

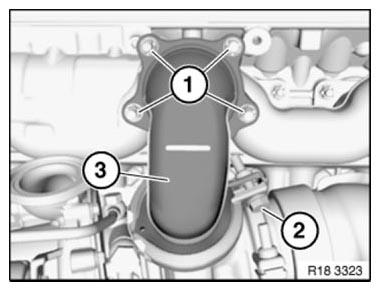

Fig 7: Identifying Intermediate Tube, Self-Locking Nut And V-Band Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten bolt (1).

Tightening torque: see 4AZ in 11 62 EXHAUST MANIFOLD

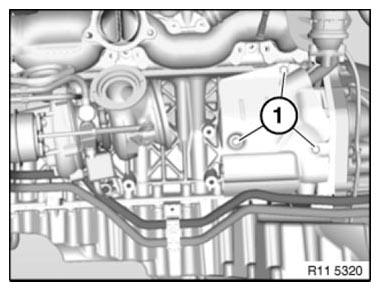

Fig 8: Identifying Exhaust Turbocharger Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check vacuum connections.

Observe BMW diagnosis instructions.
