11 13 020 Removing and installing/replacing lower oil sump section
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove STIFFENING PLATE
- Drain ENGINE OIL

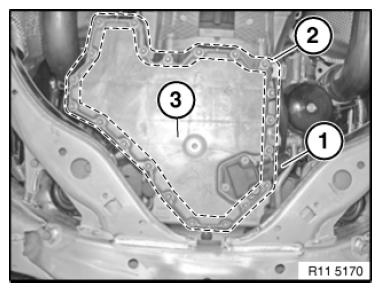

Disconnect plug connection on level sensor.
Release all screws along line (1).
Installation:
Replace seal.
Tightening torque: see 3AZ in 11 13 OIL SUMP
Assemble engine.
