11 61 065 Removing and installing/replacing both intake lines (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove intake PLENUM

Unscrew nuts (1).

Tightening torque: see 1AZ in 11 61 INTAKE PLENUM

NOTE: Cylinders 7 to 12 are depicted here; procedure is identical for cylinder 1 to 6.

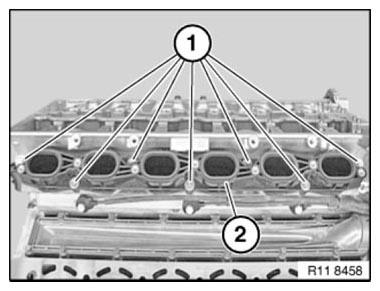

Fig 1: Identifying Intake Lines Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace all sealing rings (1).

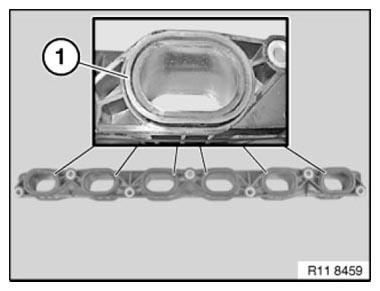

Fig 2: Identifying Intake Lines Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine and vehicle.

Check intake system for leaks.
