11 61 068 Removing and installing/replacing air intake manifold (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove throttle. See LEFT THROTTLE VALVE ASSEMBLY and RIGHT THROTTLE BODY .
Remove intercooler. See RIGHT INTERCOOLER and LEFT INTERCOOLER .
Remove vacuum reservoir.

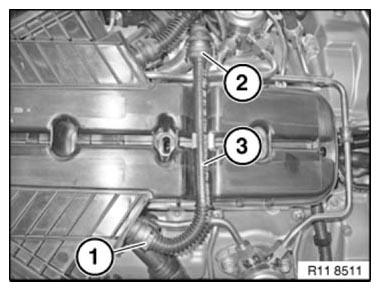

Disengage engine ventilation (3) at terminals (1 and 2).

Fig 1: Identifying Engine Ventilation At Terminals

G08469512

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Fig 2: Identifying Air Intake Manifold Screw

G08469513

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt (1) at rear of intake plenum.

Fig 3: Identifying Intake Plenum Bolt

G08469514

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1 and 2) at charge-air pressure sensor.

Fig 4: Identifying Charge-Air Pressure Sensor Plug Connection

G08469515

Courtesy of BMW OF NORTH AMERICA, INC.

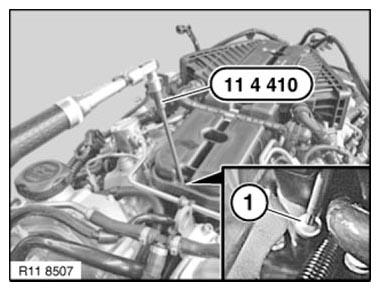

Release all bolts (1) on intake plenum using special tool 11 4 410 .

Tightening torque: see 2AZ in 11 61 INTAKE PLENUM

Fig 5: Releasing Bolts On Intake Plenum Using Special Tool 11 4 410

G08469516

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace all sealing rings (1) on intake lines.

Fig 6: Identifying Sealing Ring On Intake Lines

G08469517

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine and vehicle.

Check air intake system for leaks.
