11 14 250 Removing and installing/sealing rear coolant end cover (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!

Only perform this work after engine has cooled down.

Recycling:

Catch and dispose of drained coolant in a suitable container.

Observe country-specific waste-disposal regulations.

Necessary preliminary tasks:

Remove flywheel
Drain coolant

Release all screws in area (1).

Tightening torque: see 5AZ in 11 14 CASE COVERS

Remove end cover (2).

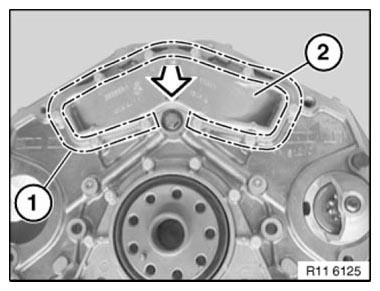

Fig 1: Identifying Screws And End Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Clean sealing surfaces with special tool 11 4 470 .

Installation:

Replace profile seal (1) .

Assemble engine.

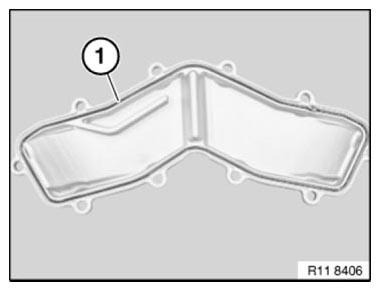

Fig 2: Identifying Profile Seal

Courtesy of BMW OF NORTH AMERICA, INC.
