00-6050 Adapter

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

0496430 006050 Adapter Minimum set: Mechanical tools MW

In conjunction with: 00 6 100;00 6 031; 00 6 130; 00 6 080

NOTE: For securing engine when removing and installing front axle support, oil sump and transmission. [Released]

SI number

01 18 08 (482)

Consisting of:

3 = 0496438 Upholstery

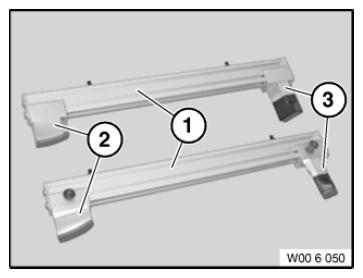

Fig 1: Identifying Adapter (0496430)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Support, long (2 pieces)) Liquidation of existing inventory and then available only as a complete tool set 00 6 050 (83 30 0 496 430) - as of 06.06.2012. [Not available separately]
2 = 0496437 Upholstery
NOTE: (Supports, short (2 pieces)) Liquidation of existing inventory and then available only as a complete tool set 00 6 050 (83 30 0 496 430) - as of 06.06.2012. [Not available separately]
1 = 0496436 Profile strip
NOTE: (Profile strip (2 pieces)) Liquidation of existing inventory and then available only as part of complete tool set 00 6 050 (83 30 0 496 430) - as of 06.06.2012. [Not available separately]
