11 72 000 Removing and installing/replacing air pump (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect negative battery cable.
Remove FAN COWL WITH ELECTRIC FAN .
Remove right-hand INTAKE SILENCER HOUSING
Evacuate AIR CONDITIONING SYSTEM .
Undo both AIR-CONDITIONING LINES at condenser.

Disconnect connector (1).

Unlock air hose (2) and remove.

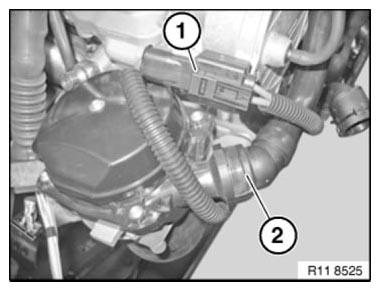

Fig 1: Identifying Air Hose And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1)

Remove air pump (2).

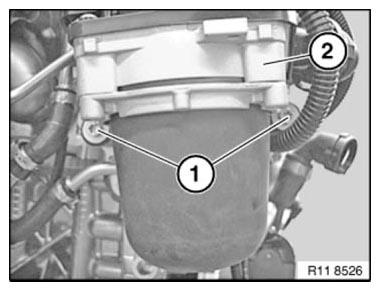

Fig 2: Identifying Air Pump And Slacken Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Check function of DME.
