64 11 858 Replacing actuator drive for right rear cabin footwell flap (High A/C system)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for instrument panel, bottom right. See TRIM (US VERSION ONLY) or TRIM (ECE ONLY) .

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

Release screws (1).

Installation:

Replace screws (1).

Take off holder (2).

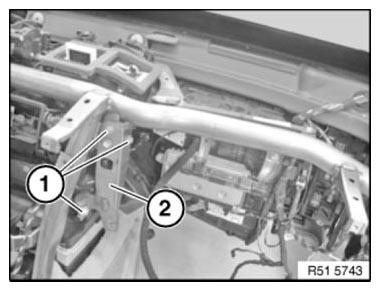

Fig 1: Identifying Screws And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip connector piece (1) and slide downwards.

Installation:

Latching of connector piece (1) must be felt.

Fig 2: Unclipping Connector Piece

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove air vent duct (2).

Installation:

Ensure cable routing along air vent duct (2) is correct

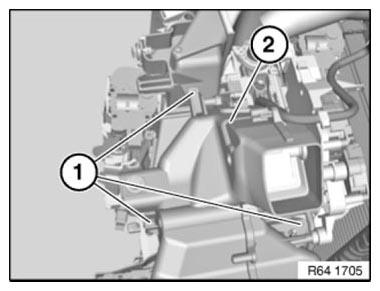

Fig 3: Identifying Screws And Air Vent Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove servomotor (2) and unlock and disconnect plug connection (3).

Fig 4: Identifying Servomotor, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and A/C function
Flap motors
Re-address flap motors
