64 11.. Overview of actuator drives on heater/air conditioner

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

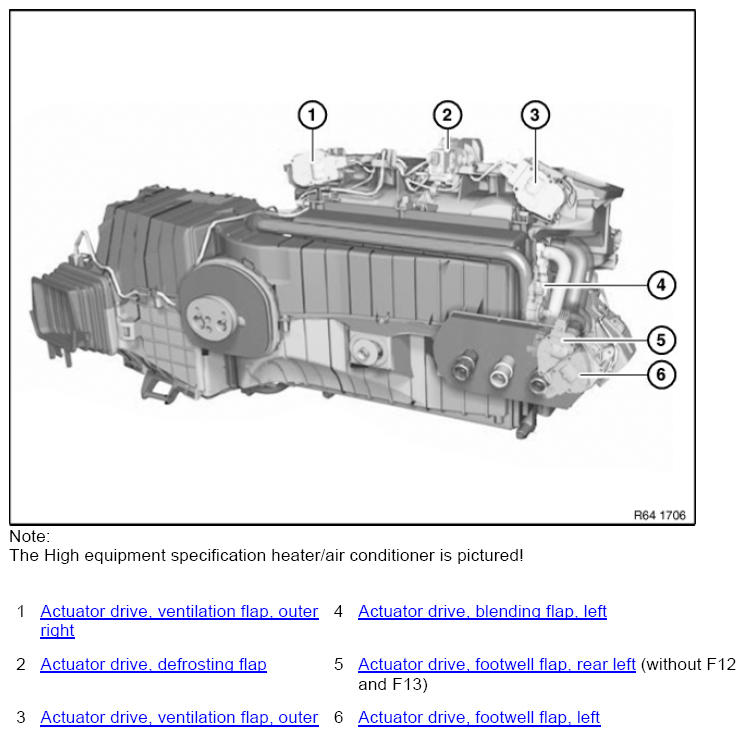

Fig 1: Overview Of Actuator Drives On Heater/Air Conditioner
G08473821Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The High equipment specification heater/air conditioner is pictured!

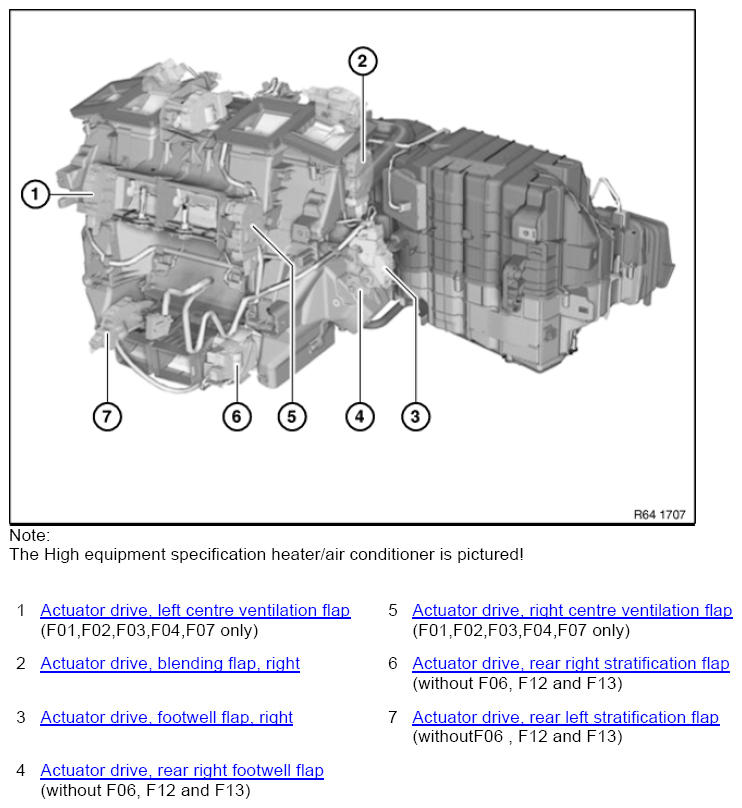

Fig 2: Overview Of Actuator Drives On Heater/Air Conditioner
G08473822Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The High equipment specification heater/air conditioner is pictured!
