61 31 321 Removing and installing radio and A/C control panel
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Risk of damage!
A hard disk is installed in the Car Information Computer (CIC).
Carry out mechanical work on the CIC and adjacent components with care.
Avoid subjecting the CIC to vibration/shocks.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD PROTECTION)
.
IMPORTANT:
Carry out installation in a dust-free workshop area only.
To avoid damage, do not touch or dirty the display field.
To avoid damage, do not touch or dirty the display field.
Necessary preliminary tasks:
NOTE:
Picture for example purposes only!
Release screws (1).
Carefully lever out radio and A/C control panel (2) with special tool 00 9 317 at points (3) in direction of arrow.
IMPORTANT:
Assign keypad depending on optional equipment
.

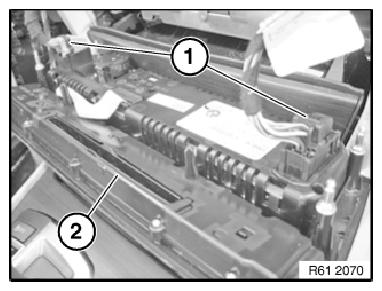

Unlock plug connections (1) and disconnect.
Remove radio and A/C control panel (2).
