34 21 169 Removing and installing/renewing a brake anchor plate/brake guard plate at rear

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PARKING BRAKE SHOES

NOTE: Picture shows wheel hub removed. Wheel hub does not have to be removed.

Release screws (1).

Installation note:

Replace screws.

Tightening torque: see 3AZ in 34 21 REAR BRAKE .

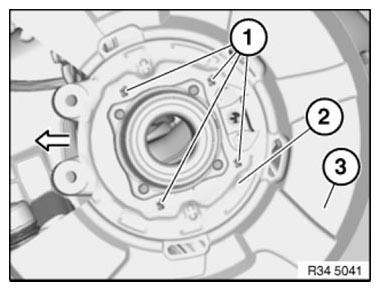

Fig 1: Identifying Screw, Retaining Plate And Brake Guard Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Remove retaining plate (2) in direction of arrow.

Feed out brake guard plate (3) over wheel hub.
