34 41 220 Removing and installing/renewing all parking brake pads

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Installation note:

REMOVE rear brake disk.
Release electromechanical parking brake (EMF).

After completing repair work, ADJUST PARKING BRAKE .

NOTE: During replacement of the hand brake coverings, the following components must also be renewed:

Brake shoe expander
Adjusting screw
Spring set

Disconnect return springs (1) with brake spring pliers.

Installation note:

Return springs (1) must not be over-elongated.

Check return springs (1) and replace if necessary.

Return springs (1) must not be mixed up.

Pay attention to installation position of adjusting screw (2).

Apply a thin coat of grease to bush and screw threads,

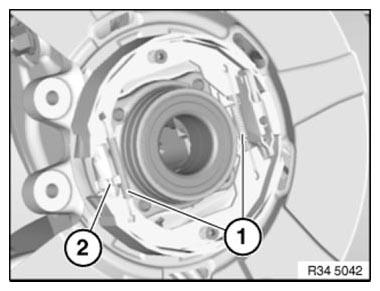

Fig 1: Identifying Springs And Adjusting Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Graphic without wheel hub.

Twist roll pins (1) 90° with special tool 34 4 000 and detach.

Remove brake pads (2).

Fig 2: Identifying Roll Pins And Brake Pads

Courtesy of BMW OF NORTH AMERICA, INC.
