32 41 431 Removing and installing/renewing Dynamic Drive expandable hose part 2 (in front wheel arch): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
DANGER OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Do not draw off hydraulic fluid (risk of contamination).
Close off line connections with seal plugs. 32 1 270

Recycling:

Catch and dispose of hydraulic fluid in a suitable collecting vessel.

Necessary preliminary tasks:

Remove right FRONT WHEEL
Remove FRONT RIGHT WHEEL ARCH COVER REAR SECTION
Remove UNDERBODY PROTECTION
Remove STIFFENING PLATE (N74 only)
Remove right STEERING ASSEMBLY COVER
Remove right UNDERBODY PANELLING

IMPORTANT: Pressure line and connection on valve block must be fitted with suitable seal plugs immediately after removal!

Release screws (2) and tie lines to one side.

Tightening torque 37 13 3AZ .

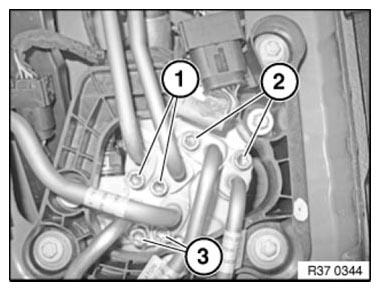

Fig 1: Identifying Dynamic Drive Expandable Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) for pressure line on valve block.

Tightening torque 37 13 3AZ .

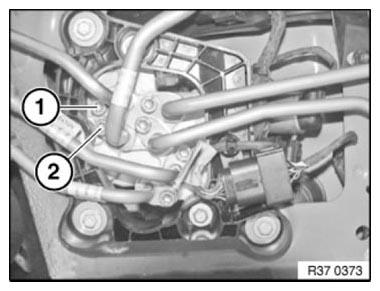

Fig 2: Identifying Dynamic Drive Expandable Screws

Courtesy of BMW OF NORTH AMERICA, INC.

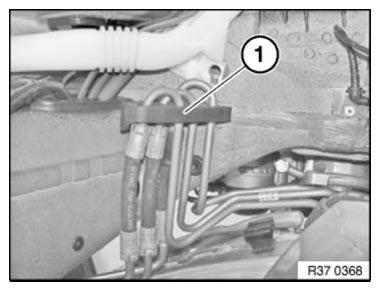

Remove rubber damping disc (1).

Installation note:

Make sure pressure lines are laid without tension and with sufficient distance to adjoining components.

Fig 3: Identifying Rubber Damping Disc

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) from line flange in engine compartment.

Remove pressure line rearwards.

Tightening torque 37 13 8AZ .

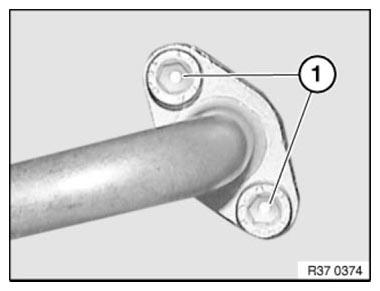

Fig 4: Identifying Line Flange Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When assembling, make sure that in succession only the seal plugs of the line to be fitted are removed.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.
