32 41 430 Replacing ARS expansion hose part 1 (from vane pump to expansion hose) N74: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Do not draw off hydraulic fluid (risk of contamination).
Close off pipe connections with plugs. 32 1 270

Recycling:

Catch and dispose of hydraulic fluid in a suitable container.

IMPORTANT: Pressure line and connections must be provided with suitable plugs 32 1 270 immediately after removal!

Necessary preliminary tasks:

Remove FAN COWL with electric fan
Installing cross member and LOWERING FRONT AXLE SUPPORT
Release and disengage front ACTIVE STABILIZER BAR
Remove pressure lines from active stabilizer bar. See PRESSURE LINE FOR VA1 SWIVEL MOTOR and PRESSURE LINE ON VA2 SWIVEL MOTOR .

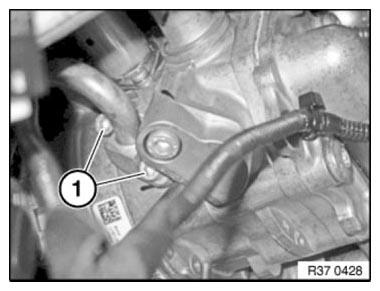

Release screw connection (1) on power steering pump and detach line.

Installation:

Replace sealing ring.

Tightening torque 37 13 10AZ .

Fig 1: Identifying Power Steering Pump Screw Connection

Courtesy of BMW OF NORTH AMERICA, INC.

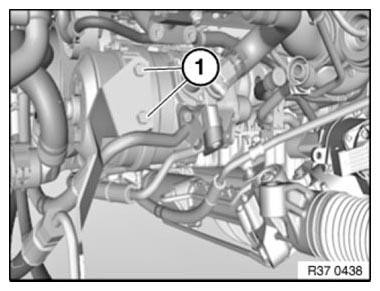

Release holder (1) on power steering pump.

Tightening torque 32 41 16AZ .

Fig 2: Identifying Power Steering Pump Holder Screws

Courtesy of BMW OF NORTH AMERICA, INC.

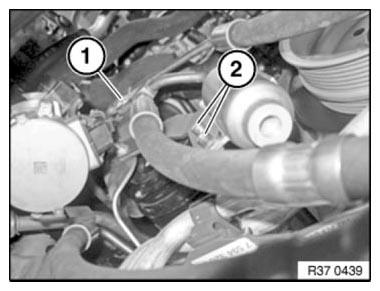

Release nuts (1) and bolts (2).

Tightening torque 32 41 7AZ .

Fig 3: Identifying Pump Nuts And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

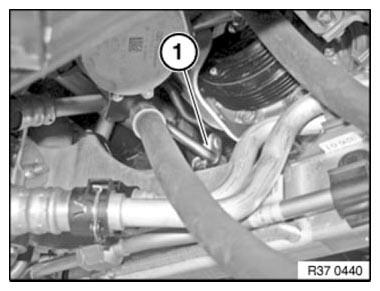

Release screw (1) on bracket.

Tightening torque, 32 41 12AZ .

Fig 4: Identifying Bracket Screw

Courtesy of BMW OF NORTH AMERICA, INC.

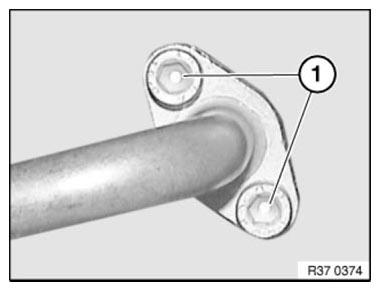

Release screws (1) from line flange in engine compartment.

Remove pressure line.

Installation:

Replace sealing ring.

Tightening torque 37 13 8AZ .

Fig 5: Identifying Line Flange Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When assembling, make sure that in succession only the sealing plugs of the line to be fitted are removed.
When fitting lines, do not tilt connectors (sealing rings!) and connect fully before screwing.
Do not replace sealing rings on hydraulic lines.
Replace affected line if sealing ring is damaged.
