32 41 311 Replacing suction line for power steering (from fluid reservoir to the power steering pump) N74: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable container.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from fluid reservoir
Remove INTAKE DUCT
Release OIL RESERVOIR

Loosen hose clamp.

Detach intake pipe from fluid reservoir.

Installation:

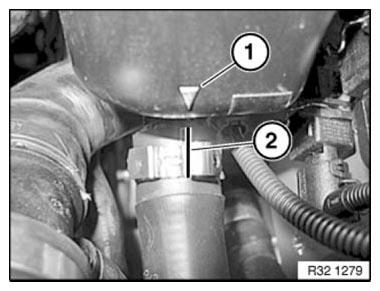

Marking (1) on fluid reservoir and marking (2) on suction line must match up.

Replace hose clamp.

Fig 1: Identifying Fluid Reservoir And Suction Line Marking Matched Up

Courtesy of BMW OF NORTH AMERICA, INC.

Release UNIVERSAL JOINT on bottom steering gear.

Mark and release power steering gear at the front axle support. See HYDRAULIC STEERING GEAR or ACTIVE FRONT STEERING HYDRAULIC STEERING GEAR .

Release and secure pressure lines from active stabilizer bar. See PRESSURE LINE FOR VA1 SWIVEL MOTOR and PRESSURE LINE ON VA2 SWIVEL MOTOR .

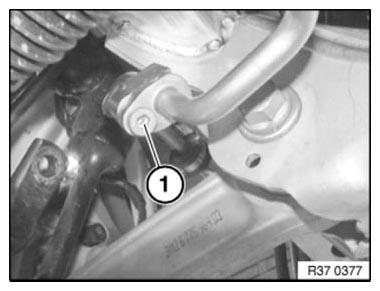

Release screw (1) from expansion hose holder on the front axle support.

Fig 2: Identifying Expansion Hose Holder Screw On Front Axle Support

Courtesy of BMW OF NORTH AMERICA, INC.

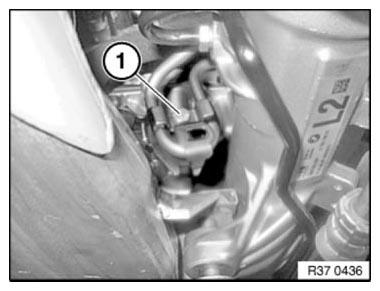

Release screw connection from return line and detach line.

Installation:

Replace sealing ring.

Tightening torque 37 13 8AZ .

Fig 3: Identifying Return Line Connection Screw

Courtesy of BMW OF NORTH AMERICA, INC.

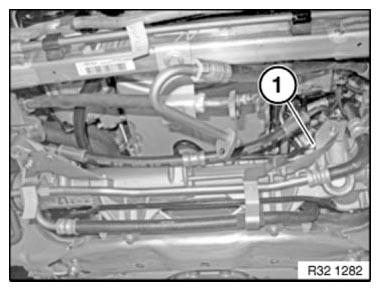

Release screw (1) from holder on the power steering gear.

Tightening torque 32 41 7AZ .

Fig 4: Identifying Power Steering Gear Holder Screw

Courtesy of BMW OF NORTH AMERICA, INC.

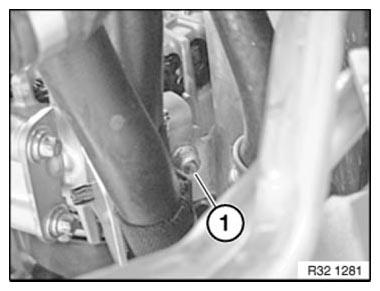

Disconnect power steering gear from front axle support and pull forwards until hose clamp (1) at vane pump is accessible.

Release hose clamp (1) and remove line.

Installation:

Replace hose clip.

Fig 5: Identifying Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

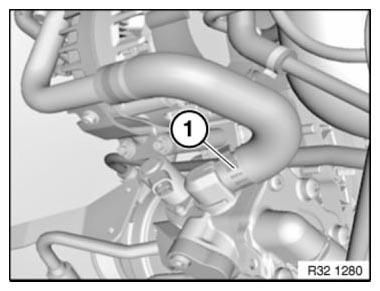

Release nut (1) from line holder on alternator.

Remove pipe.

Fig 6: Identifying Line Holder Nut

Courtesy of BMW OF NORTH AMERICA, INC.
