32 41 280 Removing and installing/replacing oil reservoir: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Seal off hydraulic lines with seal plugs.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from oil reservoir
Remove front left SUSPENSION CROSS-BRACE
Remove left intake port

Release screws (1) on wheel arch and screw (2) on expansion tank.

Remove washers.

Tightening torque 32 41 1AZ/2AZ .

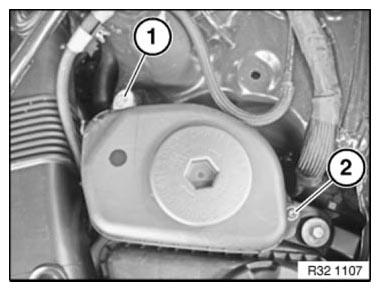

Fig 1: Identifying Wheel Arch And Expansion Tank Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Raise and/or turn fluid reservoir in order to gain better access to plug connection and hoses.

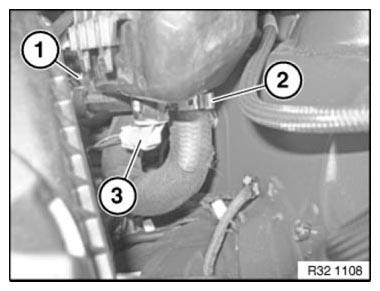

Fig 2: Identifying Radiator Return Line Hose Clamp And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release hose clamp (1) from radiator return line.

Tightening torque 32 41 3AZ .

Unfasten hose clamp (2).

Installation note:

Renew hose clamps.

Disconnect plug connection (3) on oil level sensor.

Disconnect intake pipe and radiator return line from fluid reservoir.

Lift out oil reservoir.
