32 41 100 Removing and installing/replacing belt pulley on vane pump for power steering
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Carry out preliminary work as described in REPLACING DRIVE BELT
.

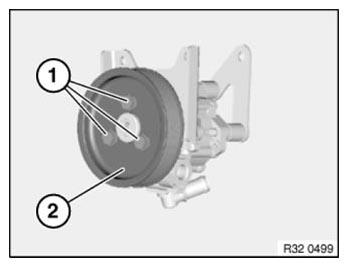

Slacken screws (1)
Relieve tension on DRIVE BELT and remove from belt pulley (2).
Unscrew bolts (1) and remove belt pulley (2).
Installation note:
Lettering on belt pulley (2) must point forwards.
Replace microencapsulated screws.
Tightening torque 32 41 4AZ .
