52 25 405 Replacing left or right rear seat cover

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEFT OR RIGHT REAR SEAT

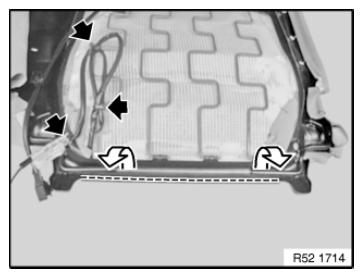

Lever out cover welt in marked area.

Disconnect all cable straps from wiring harness.

Installation note:

Replace defective cable straps.

Fig 1: Disconnecting Cable Straps From Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

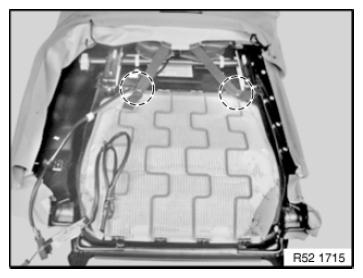

Release all clamps in marked areas.

Fig 2: Identifying Clamps Releasing Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Detaching cover and upholstery:

Release all clamps in designated areas
Remove seat cover from upholstery
Remove all remaining clamps from seat cover and/or upholstery

Fig 3: Identifying Clamps Releasing Areas
Courtesy of BMW OF NORTH AMERICA, INC.

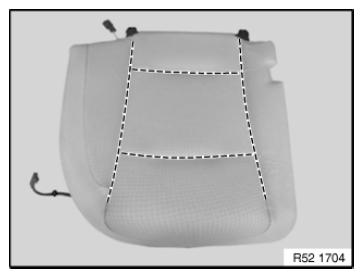

Replacing cover:

Pull all trim wires out of seat cover
If necessary, cut in mounting for trim wires of new cover
Push trim wires into new seat cover

Fig 4: Pulling Trim Wires Out Of Seat Cover
Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

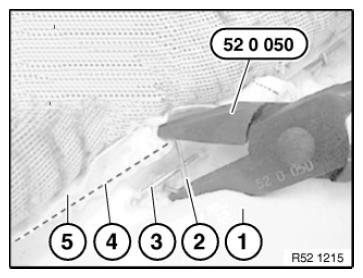

Bend new clamp (2) closed with pliers 52 0 050 .

Upholstery
Clamps
Trim wire in seat cover
Trim wire in upholstery
Seat cover

Fig 5: Inserting Retainer With Special Tool (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.
