51 43 230 Removing and installing / replacing trim on C-pillar at bottom left or right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove BELT OUTLET TRIM
Remove ENTRANCE COVER STRIP
Remove backrest. See BACKREST (NORMAL REAR SEAT) or BACKREST (ELECTRIC REAR SEAT) .

Release plastic nuts (1).

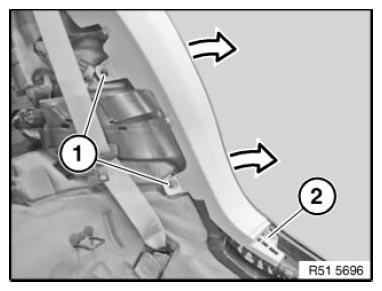

Fig 1: Identifying C-Pillar Trim Panel Plastic Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release plastic nuts (1).

Lever out clip (2).

Unclip trim.

Installation:

If necessary, replace faulty clip and retainers on trim.

Make sure trim is correctly seated in seal.

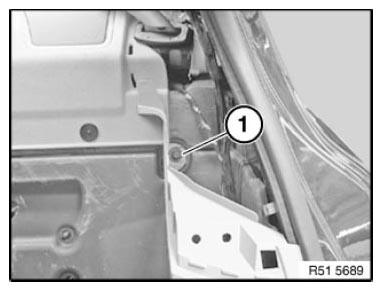

Fig 2: Removing Clip

Courtesy of BMW OF NORTH AMERICA, INC.
