51 43 075 Removing and installing/replacing side trim panel, footwell, on A-pillar, right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR SILL COVER STRIP, FRONT (INSIDE) right
Remove trim for instrument panel. See TRIM PANEL (US VERSION ONLY) or TRIM PANEL (ECE ONLY) .

Detach edge protection (1) in area of side trim (3).

Release clips (2) in direction of arrow.

Pull out side trim panel (3) from carpet.

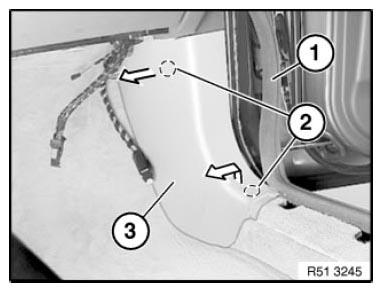

Fig 1: Releasing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Following parts of side trim panel (4) must not be damaged or missing:

Clips
Insulating mat
Tabs (for inserting in carpet)

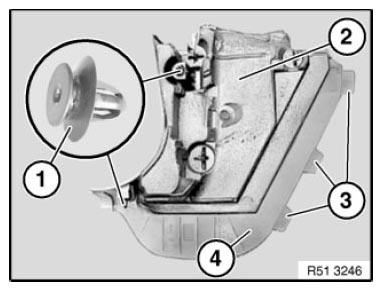

Fig 2: Identifying Clips, Insulating Mat And Tabs
Courtesy of BMW OF NORTH AMERICA, INC.
