51 43 070 Removing and installing/replacing side trim panel, footwell, on A-pillar, left

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT LEFT INSIDE DOOR SILL COVER STRIP
Remove trim panel for pedal mechanism. See TRIM PANEL (US ONLY) or TRIM PANEL (ECE ONLY) .

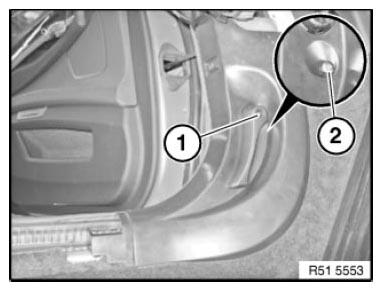

Release screw (1).

Release screw (2).

Fig 1: Identifying Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

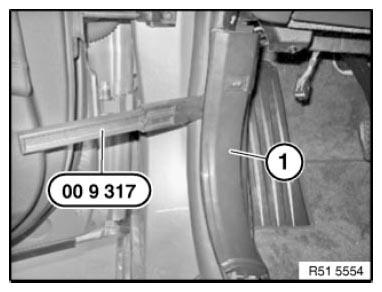

Carefully lever out A-pillar trim panel (2) using special tool 00 9 317 .

Disconnect plug connection behind.

Fig 2: Removing A-Pillar Trim Panel Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

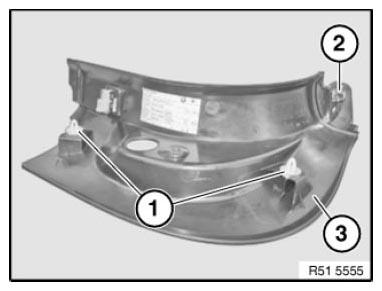

Installation note:

Make sure A-pillar trim panel (3) is correctly seated.

If necessary, replace both clips (1) and clamp (2).

Fig 3: Identifying A-Pillar Trim Panel And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
