51 42 001 Replacing left or right rear door trim panel

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL
Remove FOOTWELL LIGHT

Unclip rocker switch for side window operation (1) 00 9 317 with special tool from door trim panel (2).

Disconnect plug connection and remove rocker switch.

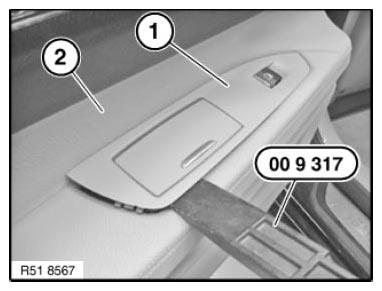

Fig 1: Removing Rocker Switch From Door Trim Panel With Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Punch CONTOUR FOR SEAT MEMORY SWITCH INTO DOOR TRIM PANEL
