51 22 280 Removing and installing/replacing door stop on left or right rear door
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove SOUND INSULATION
Attention!
Secure rear door against falling closed.
After disengaging door stop, use suitable means of preventing door from opening past its maximum permissible opening angle (risk of damaging paintwork or bodywork).

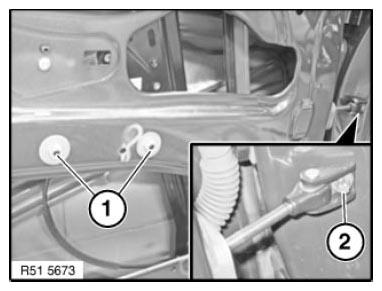

Release nuts (1) and remove washers.
Tightening torque 51 22 4AZ .
Release screw (2).
Tightening torque 51 22 3AZ .
Feed out door brake towards bottom.
