51 48 070 Removing and installing/replacing sound insulation on left or right rear door

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR DOOR TRIM PANEL

With roller sun blind optional extra only:

Remove engine.

Release screws (1).

Tightening torque 51 16 20AZ .

Release screw (2).

Tightening torque 51 16 19AZ .

Fig 1: Identifying Door Window Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

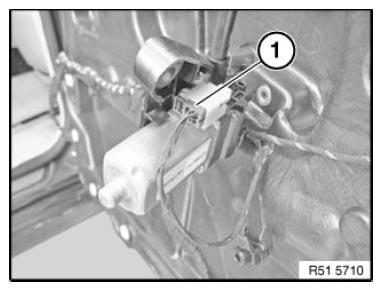

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Feed lines out of cable holder (1).

Disconnect plug connection (3) at door lock.

Release quick-connect couplings (2).

Remove sound insulation (4).

Installation:

If necessary, replace cable holders (1).

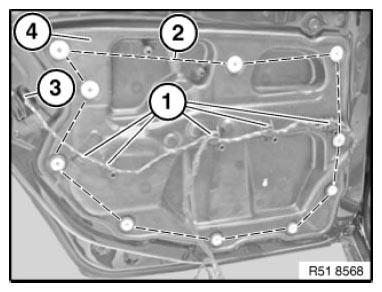

Fig 3: Identifying Holder, Plug Connection, Quick-Connect Couplings And Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.
