51 16 405 Removing and installing/replacing sun protection on fond door window glass left and right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR TRIM PANEL

NOTE: Shown with door removed for purposes of clarity.

Trim panel overview:

Remove outer (1) and inner (2) trim panel.

Refer to the following steps.

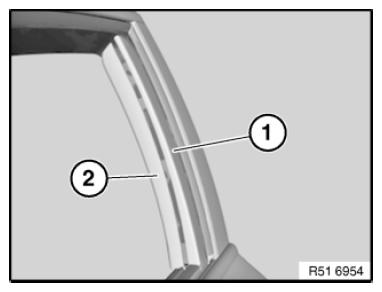

Fig 1: Identifying Outer And Inner Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip inner trim panel (1).

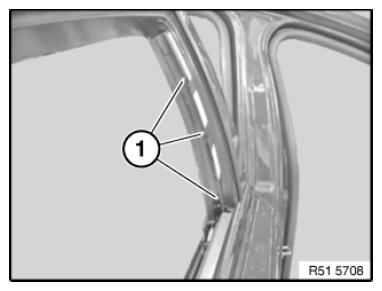

Fig 2: Identifying Inner Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

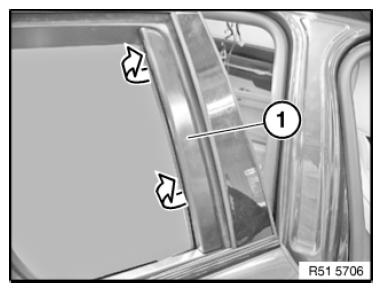

Unclip outer trim panel (1).

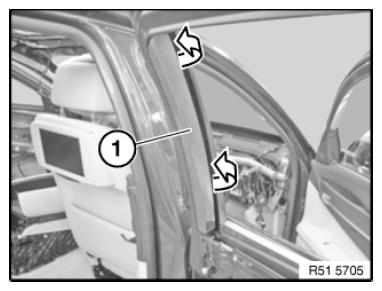

Fig 3: Identifying Outer Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 16 17AZ .

Fig 4: Identifying Trim Panel Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 16 20AZ .

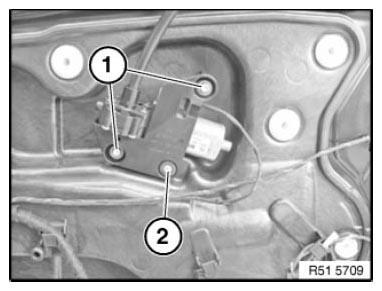

Release screw (2).

Tightening torque 51 16 19AZ .

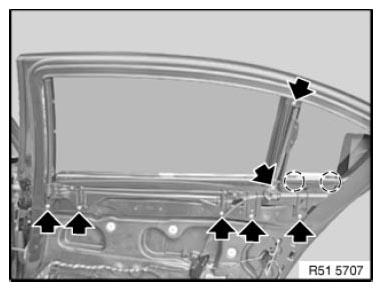

Fig 5: Identifying Door Window Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

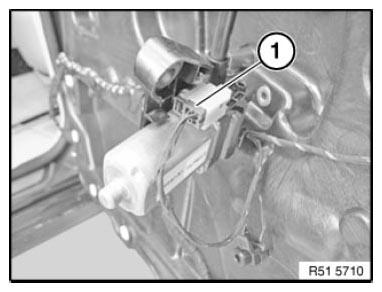

Fig 6: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

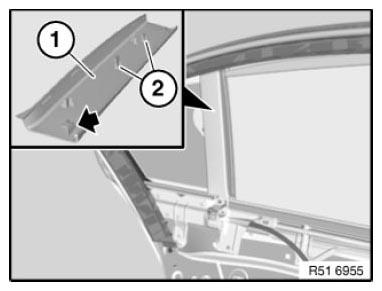

First remove trim panel (1) on top (2).

Unhook trim panel (1), pulling it up at an angle (see arrow in illustration).

Installation:

Hook (arrow) and catches (2) must not be damaged.

Fig 7: Removing Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws.

Tightening torque 51 16 18AZ .

Unlatch roller sun blind in marked area and remove.

Fig 8: Locating Roller Sun Blind Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches of roller sun blind (1) must not be damaged.

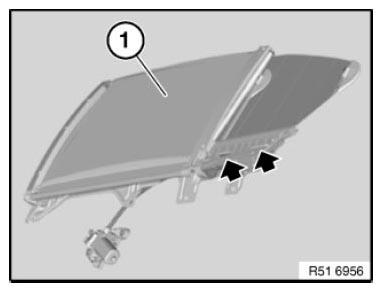

Fig 9: Identifying Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.
