51 16 365 Removing and installing/replacing glovebox cover

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT GLOVEBOX WITH HOUSING .

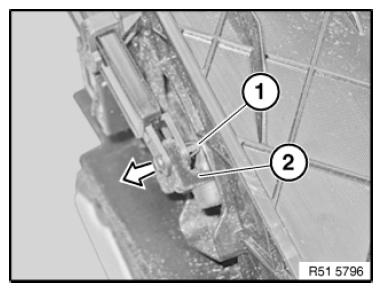

Release locking pin (1) and press out of glovebox guide (2) in direction of arrow.

Fig 1: Releasing Locking Pin And Glovebox Guide

Courtesy of BMW OF NORTH AMERICA, INC.

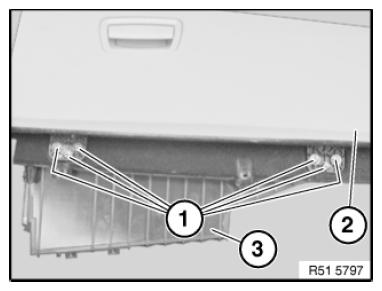

Release screws (1).

Remove glovebox cover (2) from glovebox housing (3).

Fig 2: Identifying Glovebox Cover, Glovebox Housing And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

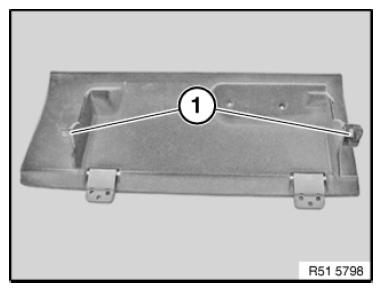

Make sure glovebox cover (1) is correctly guided.

Fig 3: Identifying Glovebox Cover

Courtesy of BMW OF NORTH AMERICA, INC.
