51 16 366 Removing and installing/replacing right glovebox with housing

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove UPPER INSTRUMENT PANEL STORAGE COMPARTMENT
Remove trim for instrument panel. See TRIM PANEL (US ONLY) or TRIM PANEL (ECE ONLY)
Remove USB INTERFACE CONNECTING SOCKET

F03 only:

Unlock and open flap (1), to enable a subsequent removal of radio predisposition line.

Unlock fuse carrier (3) and press back.

Fig 1: Unlocking Fuse Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

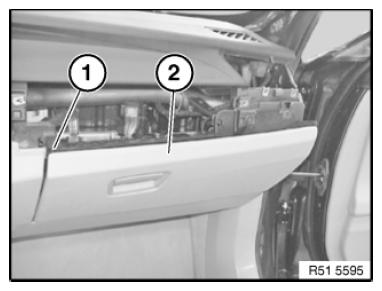

Release screw (1) on glovebox (2) at top.

Tightening torque 51 16 16AZ .

Fig 2: Identifying Glovebox And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

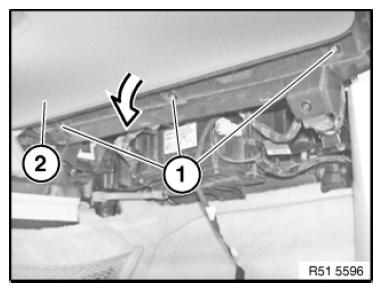

Release screws (1) on glovebox (2) at bottom.

Tightening torque 51 16 16AZ .

Remove glovebox (2) in direction of arrow.

Disconnect plug connection behind.

Replacement:

Remove GLOVEBOX LIGHT

Fig 3: Removing Glovebox
Courtesy of BMW OF NORTH AMERICA, INC.
