51 16 282 Removing and installing/replacing left or right lower housing section (up to 07/12)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PROTECTIVE CAP ON LEFT EXTERIOR MIRROR

Release screws (1).

Pull off lower housing section (2) towards rear.

Installation note:

Make sure lower housing section (2) is correctly seated in area (3).

Fig 1: Identifying Lower Housing Section And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Version with exterior mirror camera:

Release screw (1) and feed out holder (2).

Installation note:

Small image with view of rear.

Holder (2) must be correctly seated in guides (3).

Fig 2: Identifying Screw, Holder And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Fold exterior mirror (1) back.

Lift protective cap (2) downwards over latch mechanism (3).

Feed protective cap (2) in direction of arrow out of exterior mirror (1).

NOTE: Protective cap (2) must be bent slightly during removal.

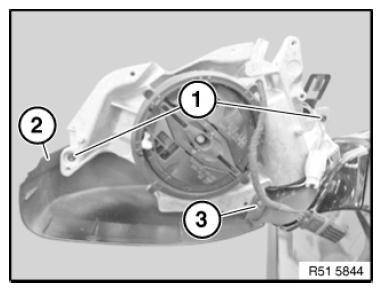

Fig 3: Feeding Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.
