51 16 041 Removing and installing/replacing protective cap on left or right exterior mirror (up to 07/12)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

Release cover cap (2) at catches (1) using suitable tool (3).

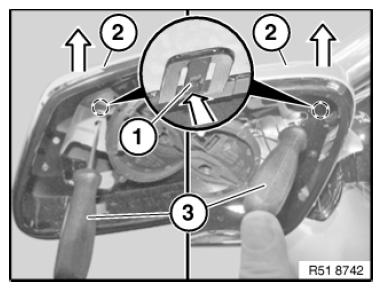

Fig 1: Releasing Cover Cap At Catches Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Secure cover cap (2) against falling off.

Release catch (1) using special tool 00 9 317 and carefully pull cover cap (2) upwards and remove.

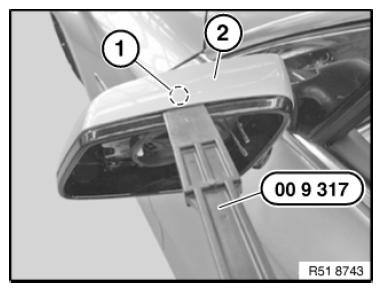

Fig 2: Releasing Catch Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches (1) and guides (2) on cover cap (3) must not be damaged.

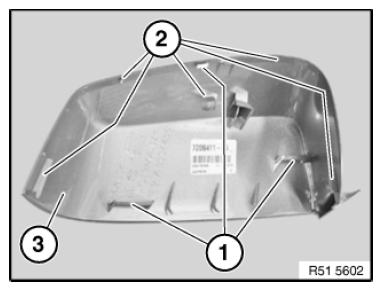

Fig 3: Identifying Catches, Guides And Cover Cap

Courtesy of BMW OF NORTH AMERICA, INC.
