51 16 282 Removing and installing/replacing left or right lower housing section (from 07/12)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RETAINING RING

Release screws (1).

Pull side repeater (2) a little towards the rear and feed out.

Feed out tab (3).

If necessary, unlock plug connection for camera and disconnect.

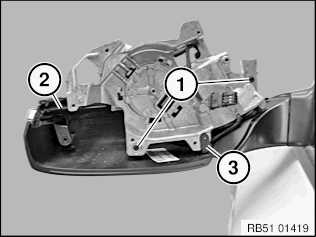

Fig 1: Identifying Repeater, Tab, And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Fold in exterior mirror (1).

Feed lower housing section (2) out of guides (3) and remove.

For replacement with Top View camera version:

Modify CAMERA .

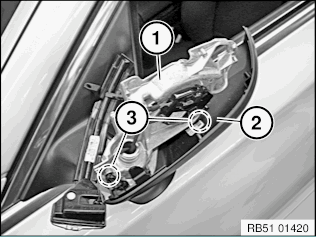

Fig 2: Identifying Exterior Mirror, Lower Housing Section, And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
