51 16 045 Removing and installing/replacing retaining ring on left or right exterior mirror (from 07/12)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DRIVE UNIT FOR EXTERIOR MIRROR
Remove PROTECTIVE CAP

Version with lane change warning:

Unlock plug connection (1) for optical signal transmitter and disconnect.

Fig 1: Identifying Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 and 2).

Installation note:

Note installation position of screws (1 and 2).

Screws (1) - metric thread
Screw (2) non-metric thread

Make sure retaining ring (3) is correctly seated (see arrows in illustration).

Fig 2: Identifying Screws And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

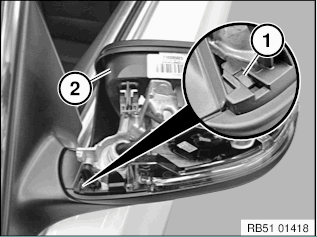

Release latch mechanism (1) and feed out retaining ring (2) towards rear.

Fig 3: Identifying Latch Mechanism And Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.
