51 16 041 Removing and installing/replacing protective cap on left or right exterior mirror (from 07/12)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove MIRROR GLASS

NOTE: Protective cap is secured without play to the retaining ring by means of multitooth catches (1).

Secure protective cap on exterior mirror against falling off.

Raise catches (2) slightly and detach protective cap towards front from multitooth catch (1).

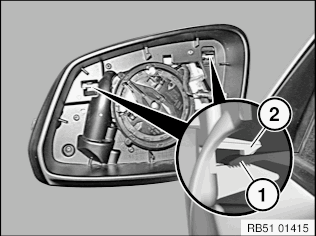

Fig 1: Identifying Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Catches and guides must not be missing or damaged.

Fig 2: Locating Catches And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
