51 16 040 Removing and installing/replacing housing on left or right exterior mirror: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RETAINING RING ON EXTERIOR MIRROR
Remove PROTECTIVE CAP ON EXTERIOR MIRROR
Remove MIRROR ADJUSTMENT DRIVE

Release screws (1).

If necessary, disconnect the connector (3) from the Top View camera.

Installation note:

Ensure latch mechanism (2) is correctly seated.

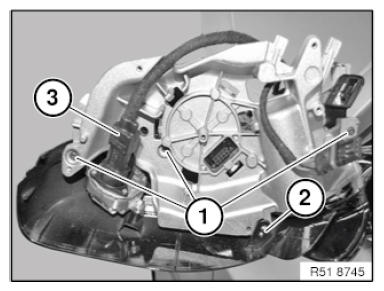

Fig 1: Removing Mirror Housing Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully loosen screw holes (1) from exterior mirror (2).

Feed out housing (3) downward.

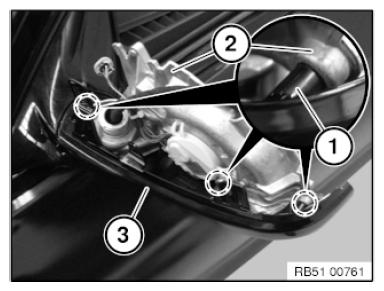

Fig 2: Identifying Screw Holes, Exterior Mirror And Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Catches (1) and screw holes (2) on housing (3) must not be damaged.
